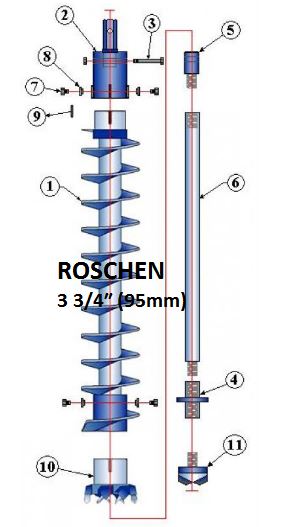

Bagian Auger

1

3 3/4 \"(95mm) DK HD Hollow Stem Auger 3 3/4\" (95mm) I.D. x 7 1/8 \"(181mm) O.D. x 5 '(1524mm)

84

38.1

2

3 3/4 \"(95mm) tutup drive DK HD dengan 1 5/8\" (41mm) hex pin

25

11.3

2

3 3/4 \"(95mm) tutup drive DK HD dengan pin hex 2\" (51mm)

28

12.7

3

# 4 Kacang & Baut Untuk Adaptor Rod-to-Cap

0.9

0.4

4

3 5/8 \"(92mm) konektor bit pilot (AW BOX - 2 3/8\" API REG. Kotak)

8

3.6

4

3 5/8 \"(92mm) konektor bit pilot (AWJ BOX - 2 3/8\" API REG. Kotak)

11

5

4

3 5/8 \"(92mm) konektor bit pilot (Kotak NW - 2 3/8\" API Reg. Kotak)

11

5

4

3 5/8 \"(92mm) konektor bit pilot (kotak NWJ - 2 3/8\" API Reg. Kotak)

12

5.4

5

Adaptor Rod-to-Cap - AW PIN

3

1.4

5

Adaptor Rod-to-Cap - PIN AWJ

3

1.4

5

Adaptor Rod-to-Cap - PIN NW

7

3.2

5

Adaptor Rod-to-Cap - PIN NWJ

6

2.7

6

AW Bor Rod - 5 '(1524mm)

21

9.5

6

AWJ Drill Rod - 5 '(1524mm)

23

10.4

6

NW Drill Rod - 5 '(1524mm)

31

14.1

6

NWJ Drill Rod - 5 '(1524mm)

35

15.9

Bagian Perbaikan Auger

1a.

3 3/4 \"(95mm) dk hd pin tool sendi

8

3.6

1b

3 3/4 \"(95mm) sendi kotak DK HD

7

3.2

7

Alb3 baut kunci auger

0.4

0.2

8

ABN3 Auger Bushing Nut

0.2

0.1

9

Tombol Drive Auger ADK2

0.3

0.1

Pemotong auger dan bit pilot

10

3 3/4 \"(95mm) DK HD Blade Cutterhead - 8 1/2\" (216mm) O.D.

16

7.3

10

3 3/4 \"(95mm) DK HD Spade Cutterhead - 8 1/2\" (216mm) O.D.

20

9.1

10

3 3/4 \"(95mm) DK HD Blade / Bullet Cutterhead - 8 1/2\" (216mm) O.D.

20

9.1

10

3 3/4 \"(95mm) DK HD Spade / Bullet Cutterhead - 8 1/2\" (216mm) O.D.

22

10

10

3 3/4 \"(95mm) DK HD Bullet Cutterhead - 8 1/2\" (216mm) O.D.

22

10

10

3 3/4 \"(95mm) DK HD 5-T Cutterhead - 8 1/2\" (216mm) O.D.

22

10

11

3 5/8 \"(92mm) Apex Pilot Bit, 2 3/8\" API Reg. Pin

5

2.3

11

3 5/8 \"(92mm) Bullet Poter Bit, 2 3/8\" API Reg. Pin

8

4.1
